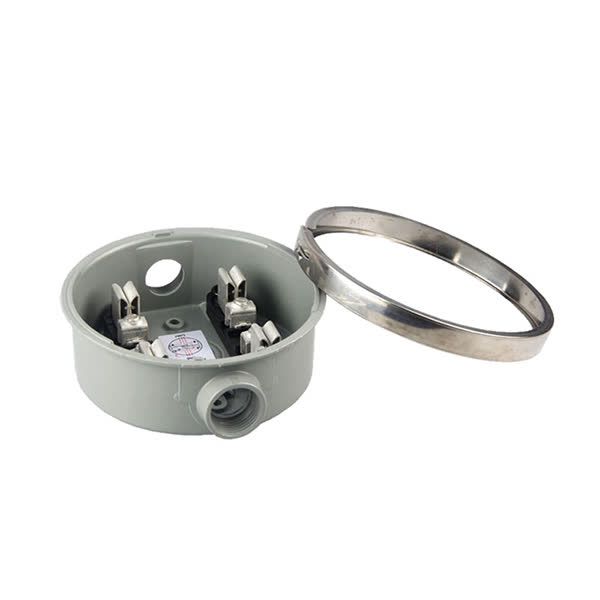

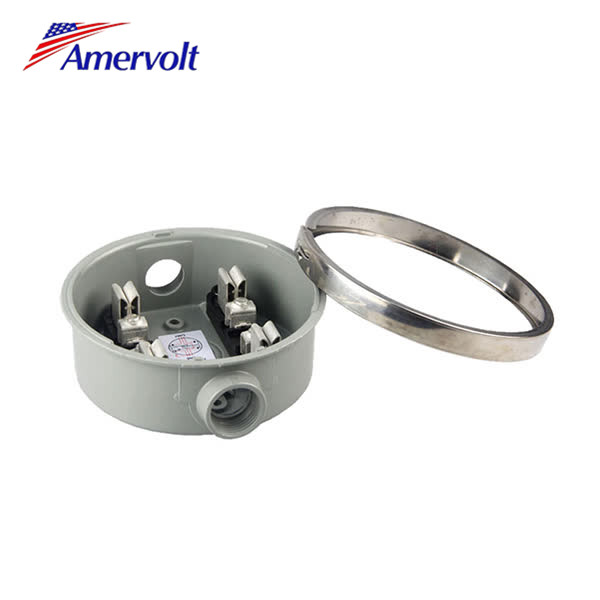

100A Round Meter Socket

Short Description:


Product Detail

Product Tags

Features:

MT-100R ANSI 12.7
100Amps,120/240V AC,Single phase,4 terminals,2 or 3 wire Long phosphor copper,Copper connector,1 or 1 1/4″Hub

MT-100R

100Amps,120/240V AC,Single phase,4 terminals,2 or 3 wire Copper Jaw,Copper or aluminum connector

The Die-cast Aluminium enclosure.Electrostatically applied epoxy and polyester resins,which are baked on.Gray color exterior.

The current carrying parts are made of phosphor copper.

The ground connector is designed to in sure a positive electrical connection by effectively clamping the conductor against a serrated surface.

Stainless steel sealing ring

Fix hub size:1/2,3/4,1,1-1/4 for option

100A Round Meter Socket
